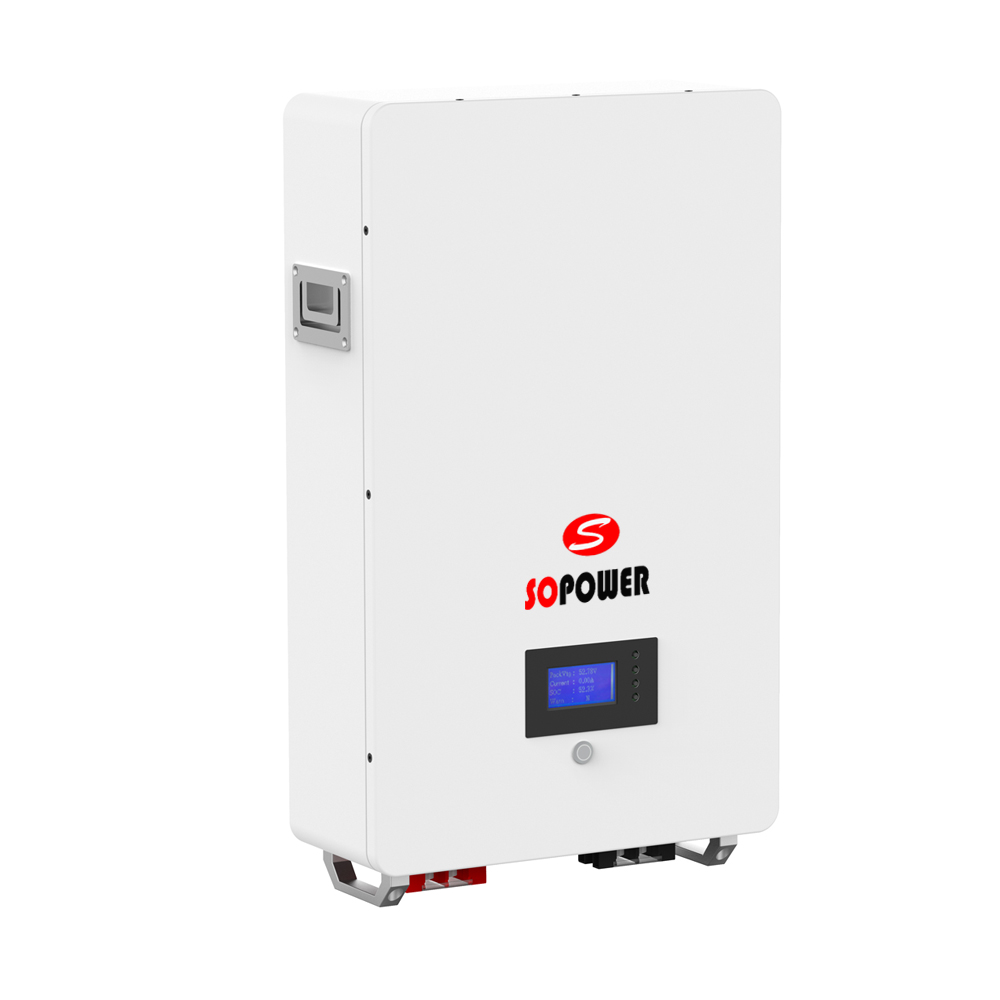

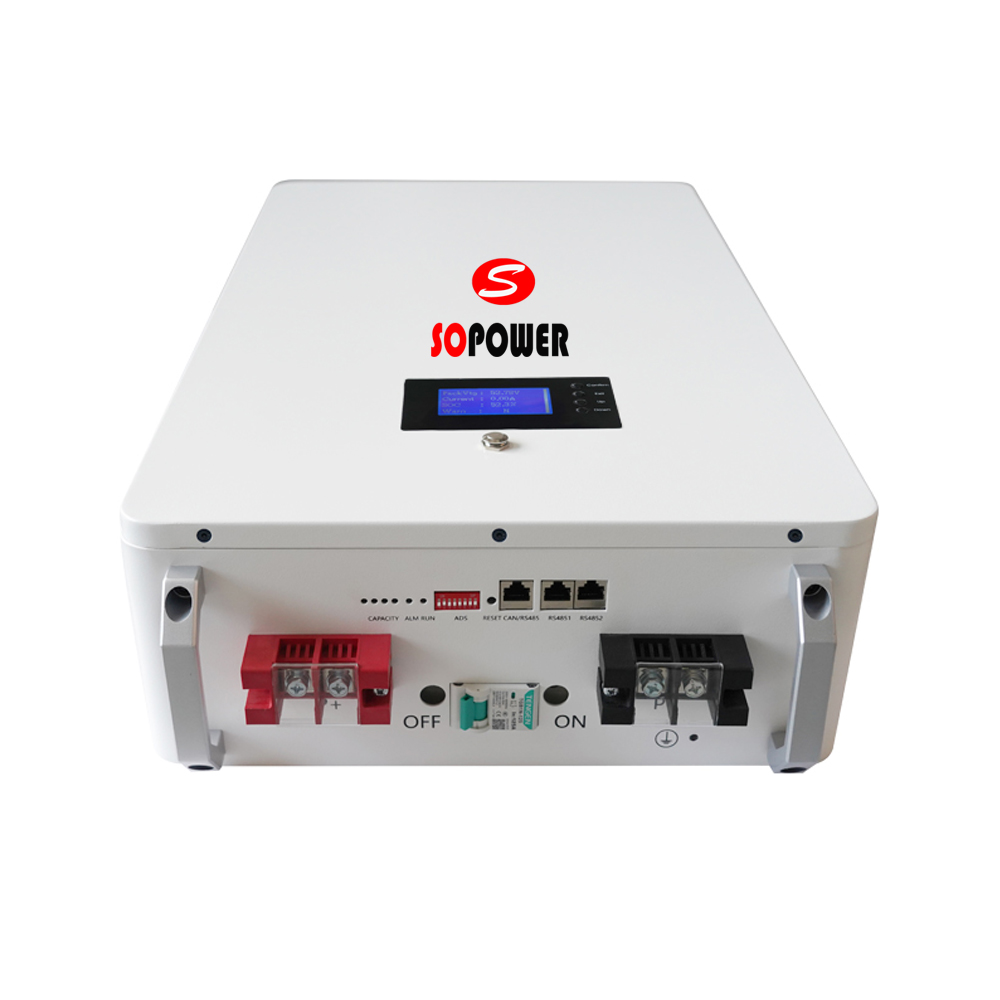

LM Series Lithium battery

LM series 5KWH-10KWH LiFePO4 lithium battery bulit-in BMS intelligent protection, A+ grade cell, applicable for on-grid and off-grid solar systems.

Key Features

Parameter

• High quality lithium iron phosphate

• Bulit-in BMS intelligent protection

• Display screen switching inverter protocol

• MSDS, CE, IEC, UN38.3 certification

• Applicable for on-grid and off-grid

• Wall mounted to save space

• 5KWH / 10KWH optional

• A+ grade cell

Model	LM51.2-100	LM51.2-200
Specification
Rated voltage	51.2V	51.2V
Rated capacity	100AH	200AH
Operating voltage	42V - 58.4V	42V - 58.4V
Rated energy	5120WH	10240WH
Life cyccles (70% EOL, 25℃)	6000 cycles	6000 cycles
Standard Charge & Discharge
Max. charge current	50A	100A
Max. discharge current	100A	100A
Discharge cut-off voltage	43.2V	43.2V
Floating voltage	57.6V	57.6V
Communication
Communication interface	RS485, CAN
Mechanical Characteristics
Protetion Grade	IP20	IP20
Dimension (LWH)mm	368600150	520830159
Paking size (LWH)mm	435695250	590900260
Weight (N.W.) KG	46	98
Packing weight (G.W.) KG	51	101
Working temperature	Charge: 0℃ ~ 40℃ Discharge: -20℃ ~40℃
Storage temperature	- 10°C ~ 35°C (Recommendation 23±2°C)
