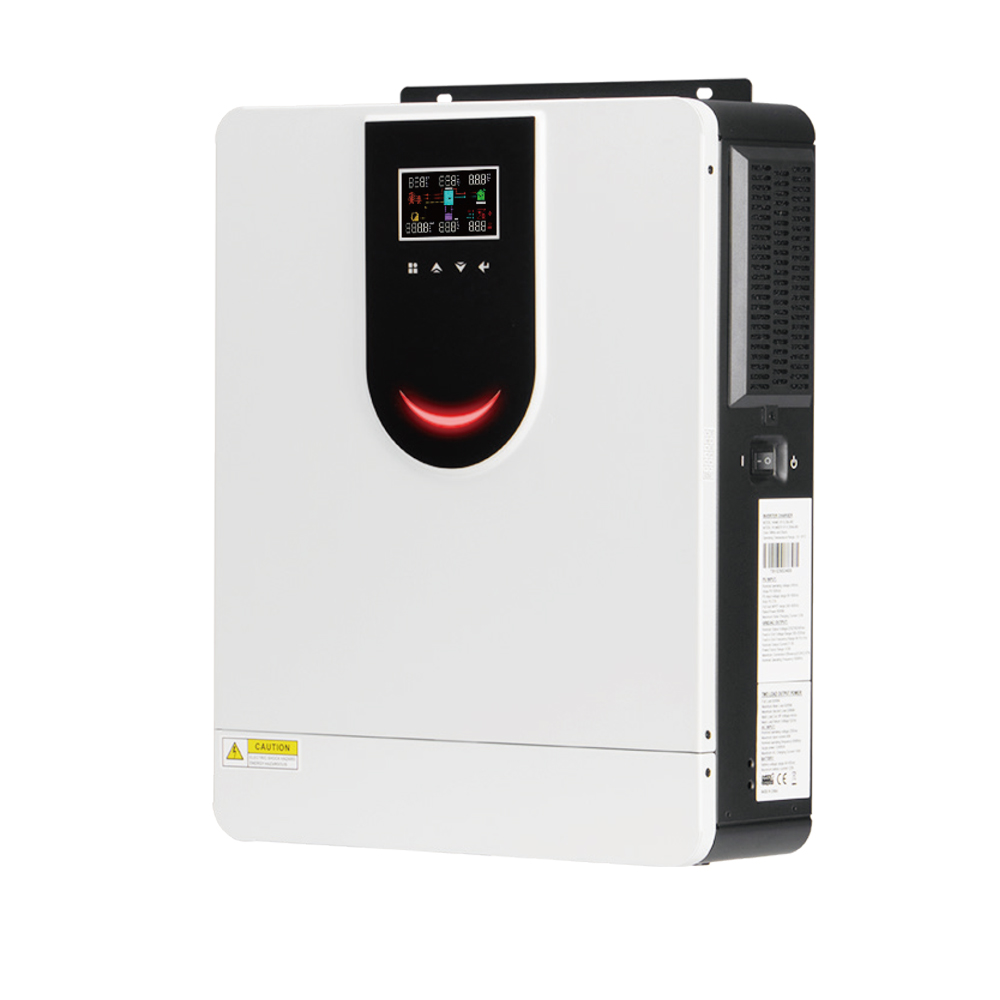

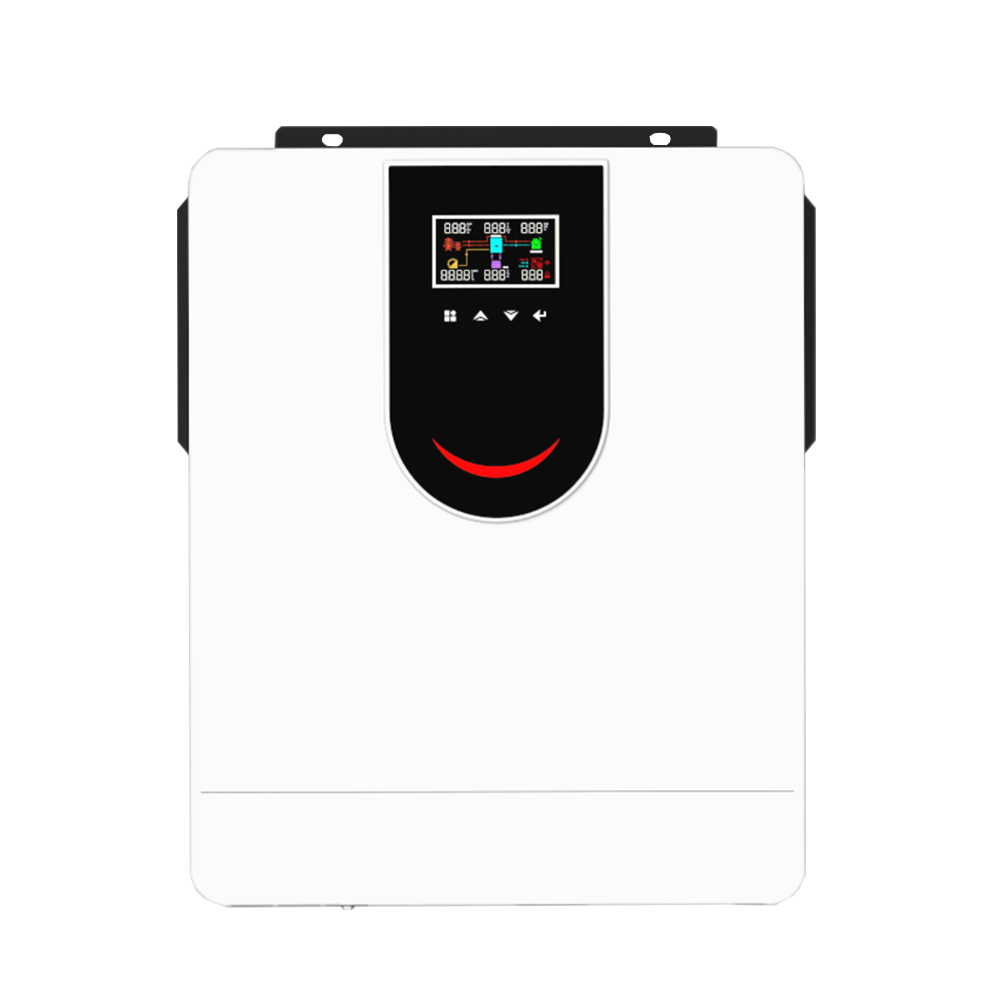

MHV Series Solar Inverter / Charger
MHV series on/ off grid solar inverter with 60V-500VDC wide PV input range of 120A MPPT solar charger, WIFI/GPRS available，built-in lithium battery automatic activation
Key Features
Parameter
• Pure sine wave solar inverter (on / off grid)
• Inverter running without battery
• Output power factor 1.0
• High PV input voltage range (60-500VDC)
• WIFI&GPRS available for IOS and Android
• Built-in anti-dusk kit for harsh environment
• Built-in 120A MPPT solar charger
• Smart battery charge design to optimize battery life
• One-key restoration to factory settings
• Dual output
• Dual communication ports for battery communication and wifi communication
• Built-in lithium battery automatic activation
• Built remove LCD display and key
| Model | MHV-3K6 | MHV-4K2 | MHV-6K2 |
| Phase | 1- phase | ||
| Max. PV Input Power | 6200W | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA |
| Max. Solar Charging Current | 120A | ||
| GRID-TIE OPERATION | |||
| PV Input (DC) | |||
| Nominal DC Voltage / Max. DC Voltage | 360/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 60VDC/90VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Number of MPPT Trachers / Max. Input Current | 1/18A | 1/22A | |
| Efficiency | |||
| Max. Conversion Efficiency (DC/AC) | 98% | ||
| Two Load Output Power | |||
| Full Load | 3600W | 4200W | 6200W |
| Max. Main Load | 3600W | 4200W | 6200W |
| Max. Second Load (Battery Mode) | 1200W | 1400W | 2067W |
| Main Load Cut Off Voltage | 26VDC | 26VDC | 52VDC |
| Main Load Return Voltage | 27VDC | 27VDC | 54VDC |
| OFF-GRID OPERATION | |||
| AC Input | |||
| AC Start-up Voltage / Auto Restart Voltage | 120~140VA / 180VAC | ||
| Acceptable Input Voltage Range | 90~280VAC Cor 170~280VAC | ||
| Frequency Range | 59~61 ± 1Hz | ||
| Max. AC Input Current | 21.1A | 24.7A | 36.4A |
| PV Input (DC) | |||
| Nominal DC Voltage / Max. DC Voltage | 360/ 500VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Number of MPPT Trachers / Maximum Input Current | 1/18A | 1/22A | |
| Battery Mode Output (AC) | |||
| Nominal Output Voltage | 220/ 230/ 240VAC | ||
| Output Waveform | Pure sine wave | ||
| Efficiency (DC to AC) | 94% | ||
| Battery & Charger | |||
| Nominal DC Voltage | 24VDC | 48VDC | |
| Max. Solar Charging Current | 120A | ||
| Max. AC Charging Current | 100A | ||
| Max. Solar + AC Charging Current | 120A | ||
| HYBRID OPERATION | |||
| PV Input (DC) | |||
| Nominal DC Voltage / Max. DC Voltage | 360/ 500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 90VDC/ 120VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Max. Input Current | 1/18A | 1/22A | |
| Grid Output (AC) | |||
| Nominal Output Voltage | 220/ 230/ 240VAC | ||
| Output Voltage Range | 195~253VAC | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| AC Input | |||
| AC Start-up Voltage / Auto Restart Voltage | 120~140VAC/ 180VAC | ||
| Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | ||
| Max. AC Input Current | 21.1A | 24.7A | 36.4A |
| Max. AC Charging Current | 100A | ||
| GENERAL | |||
| Physical | |||
| Dimension (DxWxH) mm | 420*350*145 | ||
| Net Weight (KGS) | 9.0 | 9.5 | 10.0 |
| Gross Weight (KGS) | 10.0 | 10.5 | 11.0 |
| Interface | |||
| Communication Port | RS232/ RS485/ Remove LCD/ WIFI/ GPRS/ LITHIUM Battery | ||
| Environment | |||
| Humidity | 5% to 95% relative humidity (Non-condensing) | ||
| Operating Temperature | - 10°C ~ 50°C | ||
