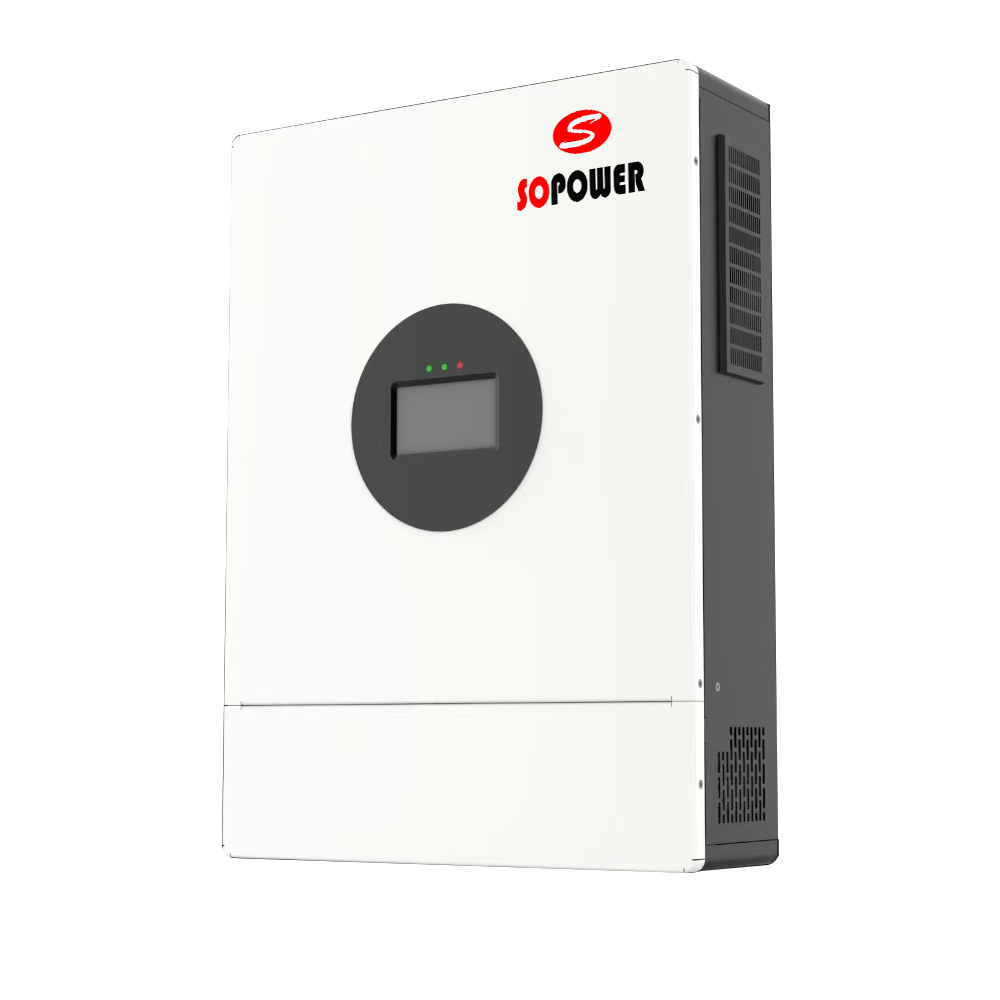

MLK Series Solar Inverter
MLK series split phase solar inverter with MPP trackers, RS485、CAN、USB、dry contact、WIFI、Bluethooth communication ports, compatible with lithium battery.
Key Features
Parameter
• IP20/IP54, meeting the usage requirements of different scenarios
• Supports up to 6 units in parallel
• Configurate 1/2 MPPT, tracking efficiency is as high as 99.9%
• Comprehensive safety protection from software to hardware
• BMS communication protocol can be opened
• Variety of protection functions, fully protect the safty of photovoltaic panels, batteries, loads and the controller itself
• Capactive smart touch large screen, menu operation, intuitive and convenient parameter setting
• Multi communication ports: RS485/ CAN/ USB/ GPRS/ WIFI/ Bluetooth/ 4G/ LAN(Optional)
| Model | MLK-5K | MLK-6K | MLK-8K | MLK-10K | MLK-12K |
| Rated Power | 5KW | 6KW | 8KW | 10KW | 12KW |
| Surge Rating(20ms) | 10KW | 12KW | 16KW | 20KW | 24KW |
| Inverter Output | |||||
| Output Waveform | Pure sine wave | ||||
| Rated Output Voltage | 120Vac (single phase) / 240Vac (split phase) | ||||
| Rated Frequency | 50/60Hz | ||||
| Transfer Time AC to DC | 10ms (typical value). The maximum value is 20ms for single unit and 30ms for parallel operation.) | ||||
| Motor Load Capacity | 4.8HP | 4.8HP | 5HP | 6HP | 6HP |
| Overload Protection | Adopting an inverse time overload protection algorithm | ||||
| Battery | |||||
| Rated Battery Voltage | 48V | ||||
| Battery Voltage Range | 40 ~ 60VDC | ||||
| Max. PV Charging Current | 120A | 120A | 180A | 200A | 220A |
| Max. Utility / Generator Charging Current | 100A | 100A | 100A | 120A | 140A |
| Max. Mixed Charging Current | 120A | 120A | 180A | 200A | 220A |
| Battery Type | AGM, Lead Acid, Lithium-ion etc. | ||||
| PV Input | |||||
| Number of MPPT Channels | 1 | 1 | 2 | ||
| Max. Input Power | 7500W | 9000W | 7500W + 7500W | 9000W + 9000W | |
| Max. Input Current | 27A | 22A + 22A | |||
| Max. Open Circuit Voltage | 500V | 500V + 500V | |||
| MPPT Operating Voltage Range | 125 ~ 425VDC | ||||
| AC Input | |||||
| Input Waveform | Pure sine wave | ||||
| Input Voltage Range | 90 ~ 275VAC | ||||
| Input Frequency Range | 50/60Hz | ||||
| Bypass Overload Current | 40A | 50A | 63A | ||
| Efficiency | |||||
| MPPT Tracking Efficiency | 99.90% | 99.99% | |||
| Max. Efficiency of Battery Inverter | 93% | 92% | |||
| Communication | |||||
| Communication Method | RS485/ CAN/ USB/ GPRS/ WIFI/ Bluetooth/ 4G/ LAN(Optional) | ||||
| Environment | |||||
| Protection | IP20 (IP54 Optional) | ||||
| Parallel Function | Yes, 6pcs | ||||
| Amibient Temperature | -10 ~ 55℃ | ||||
| Noise | < 45dB | < 60dB | |||
| Cooling Method | Intelligent air cooling | ||||
| Mechanical Specifications | |||||
| Mounting | Wall mount | ||||
| Inverter Dimensions(W*H*D) mm | 470*400*130 | 450*620*142 | |||
| N.W. (KGS) | 17.5 | 27 | |||
| Warranty | 3 years | ||||
